PERGOLOUVER

The Exclusivity of Class

Product Description


Designed to offer a distinctive waterproof shading solution to the most sophisticated demand for outdoor luxury protection, Pergolouver is a self-standing or wall-connected horizontal system able to be adjusted for natural light and ventilation.

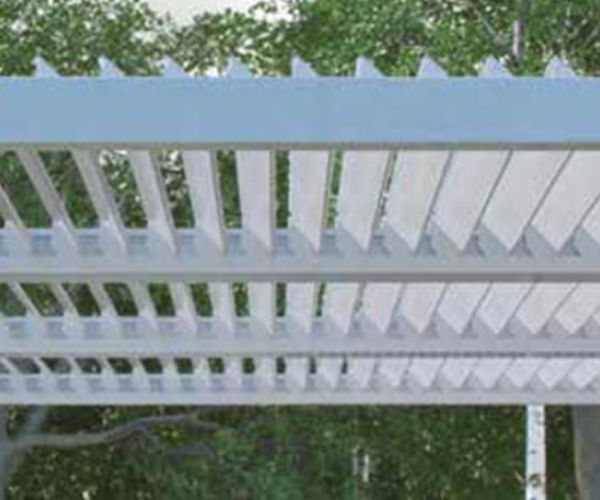

Its aluminum elements are fully powder coated, and its slats allow a rotation between 0 and 140 degrees, possibly selecting any desired intermediate position to better respond to any specific light direction.

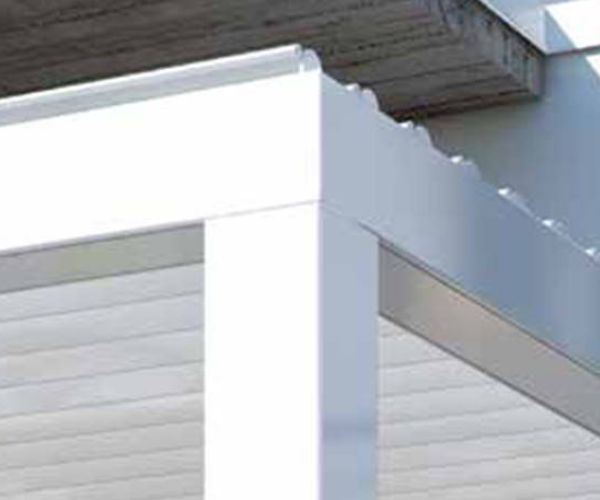

Its perimeter is a hidden gutter connected to its uprights, acting as vertical drain sprouts. At the same time, the motorized rotation of its slats offers sun or rain protection, making any covered area enjoyable.

Pergolouver offers sun or rain protection thanks to its adjustable slat rotation, making any covered area enjoyable. Its lats have a rubber gasket that guarantees waterproof protection when the slats are fully closed.

Pergolouver can be produced as a maximum 14.5’ width and 20’ projection single unit with only four corner uprights, or it can reach a 26’ projection with an intermediate upright. Side-by-side units can be combined to cover any proposed area.

Pergolouver is motorized with a low voltage motor, and its 8” deep perimeter is perfect for receiving sun or mosquito rolling screens in their elegant cassettes to provide privacy.

Pergolouver is available in both wall-connected and self-standing configurations.


Product Features


Expandable

As part of the patio system collection designed by Alutex, Pergolouver also offers the possibility to install side rolling curtains in cassette to create a fully protected outdoor environment.

Safe

Whether you choose sunscreen drop curtains for sun or privacy or mosquito screens for insect protection, side curtains installed around Pergolouver’s perimeter represent the perfect completion of these self-standing modern pergolas.

Elegant

Designed with particular attention to detail for its components, Pergolouver offers precision and simplicity at the installation level without compromising elegance.

Dependable

Supplied with white or cream fire-retardant waterproof PVC, Pergolouver is the perfect complement to selected outdoor areas to extend social gatherings or create new personal spaces for privacy or leisure.

Product Highlights


Adjustable slats from 0° to 140°

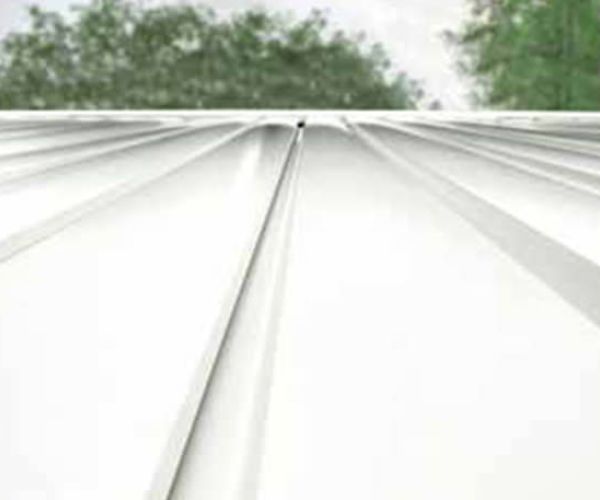

Water-drain channels designed along the slats

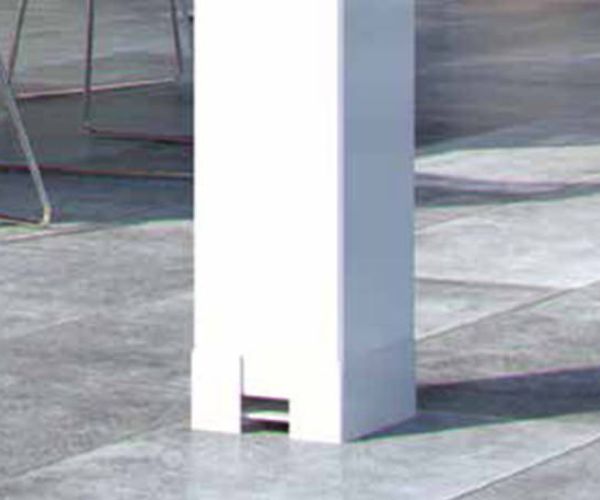

Adjustable floor anchor plate
Perimeter rain gutter and 8″x8″ water drain uprights

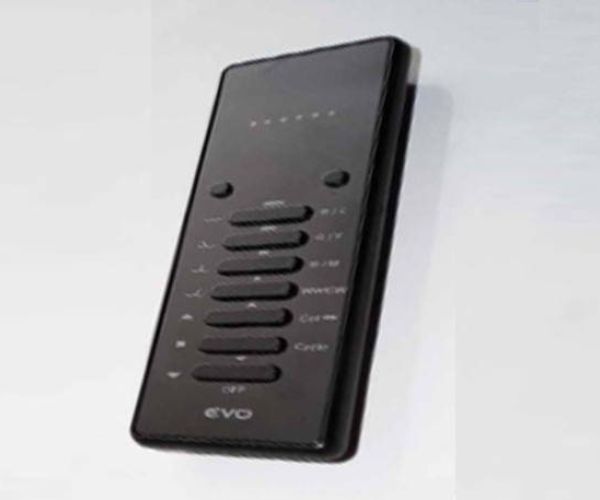

Remote control

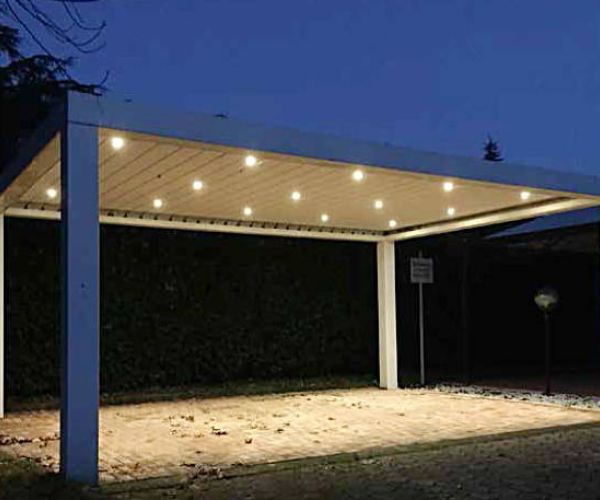

Optional led lights

Technical Specifications


Width Range
6’ to 15 (1’ increment)
Projection Range
6’ to 26’ (intermediate leg at 20′
Slat section
8.5” x 1.5”
Upright section

6” x 6”

Perimeter section
8” x 8” x 2.75”
Opening Control
Motorized only
Installation Option
Self-standing or Wall-connected
Perimeter height
8″
Min. pitch for water flow
0%
Max inclination for water flow
10%
Side curtains
Optional
Rain Sensor
Optional
Snow Sensor
Optional
Standard Frame Color

White

Custom Frame Color

Any (on request)

Frame Warranty
5 Years on structural parts
